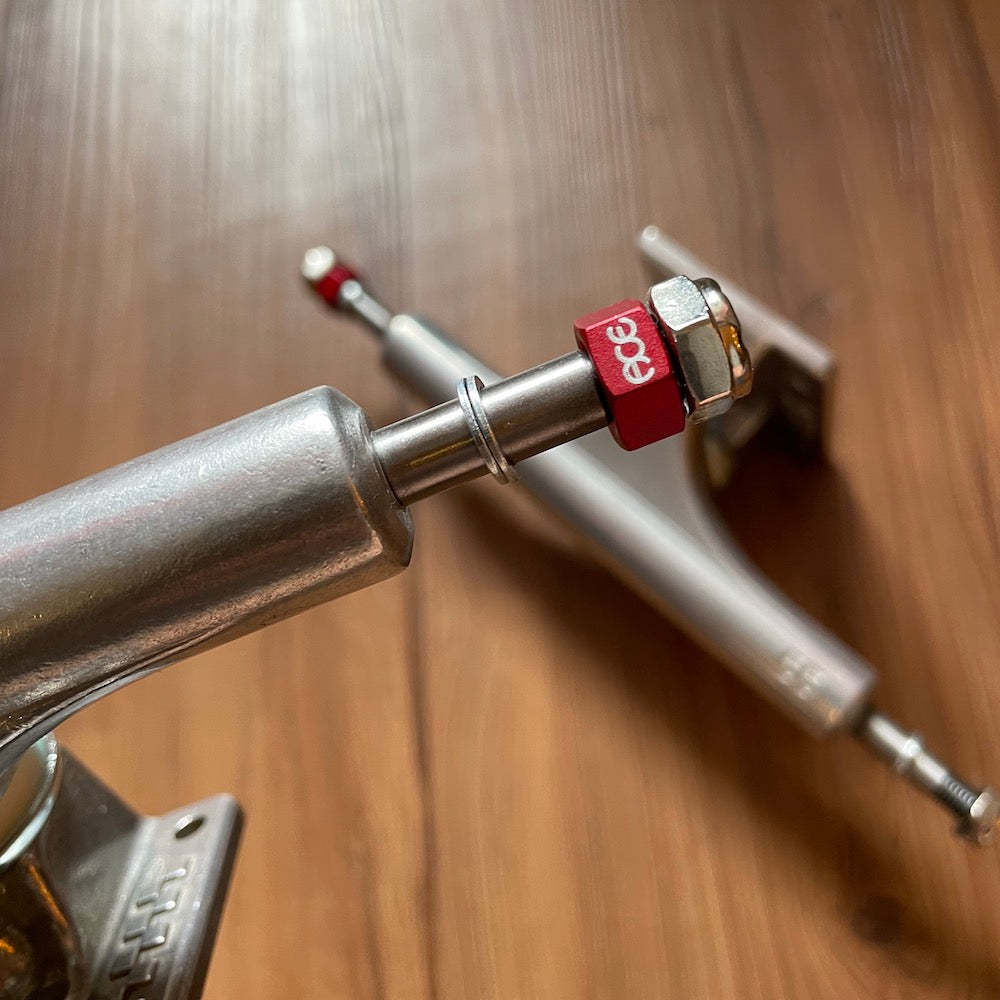

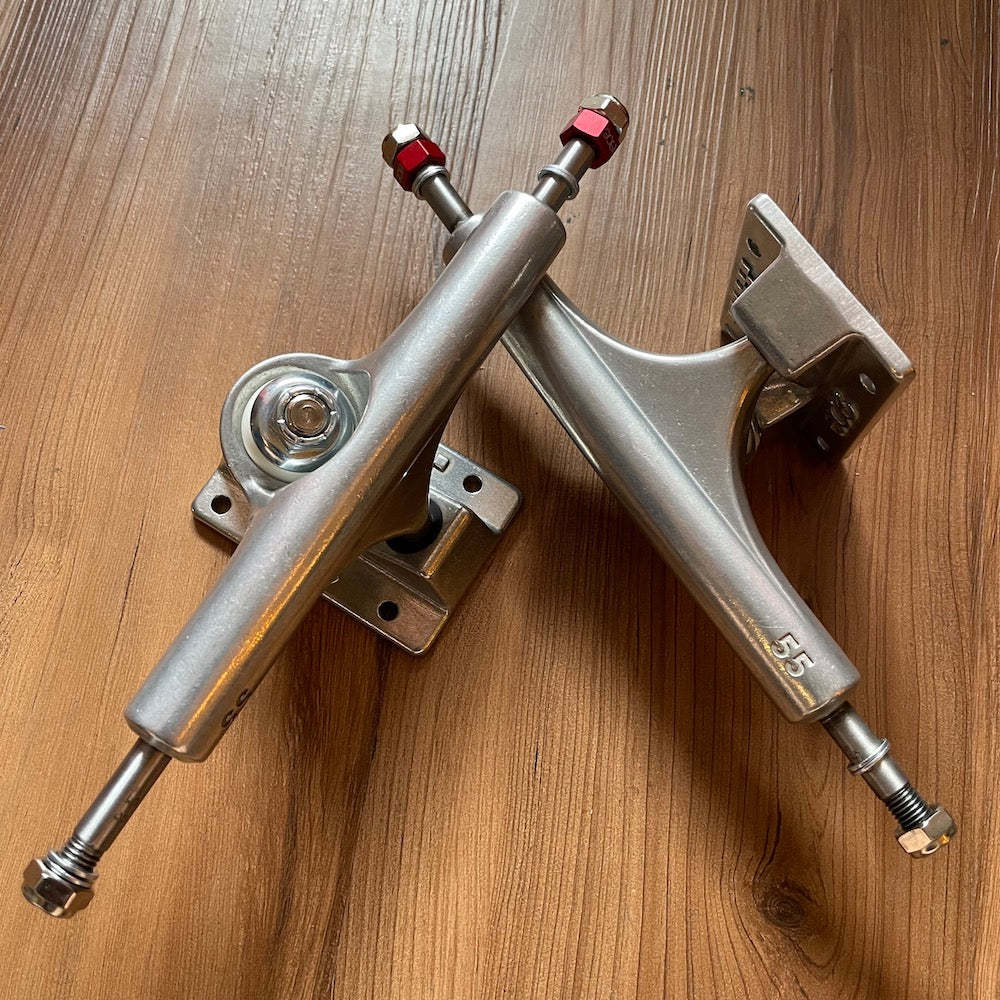

The all-new ACE AF1 features game-changing performance without deviating from the original Ace geometry. The AF1 is carefully manufactured using Ace's proprietary casting process. Years in development, the ACE AF1 has a 70% increase in the aluminum’s structural integrity, making it the strongest cast truck on the market.
Sold in a pair of 2 trucks.

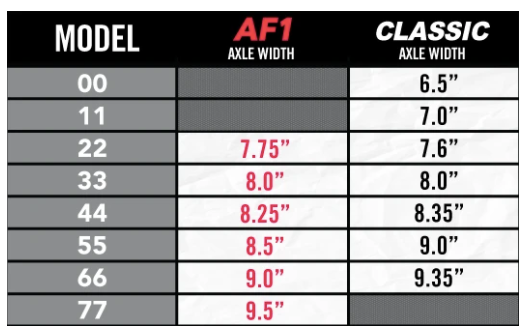

Sizes / axle width / hangar width / weight / fits boards
- 33 / 8" (203mm) / 5.4" (137mm) / 13.5oz / 7.75-8.125"
- 44 / 8.25" (209mm) / 5.6" (143mm) / 13.9oz / 8.125-8.3"
- 55 / 8.5" (215mm) / 5.8" (149mm) / 14oz / 8.3-8.75"
- 66 / 9" (229mm) / 6.4" (163mm) / 14.5oz / 8.75-9.25"
Features:
- Truck height: 2.1” (53mm)
- Manufactured with high-quality AA 356.2 alloy using Ace's own proprietary casting method
- True T6 heat-treated baseplates and hangers
- SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.
- Patent pending rethreading axle nuts - no more damaged axle ends!
- Durable Hand-poured 96a urethane pivot bushings for better response.
- Refined suspension for a cleaner turn.
- Top Bushing: 12mm tall | 91a hardness
- Bottom Bushing: Bottom 14mm tall | 86a hardness
- Machine-faced hanger ends for precise bearing contact
